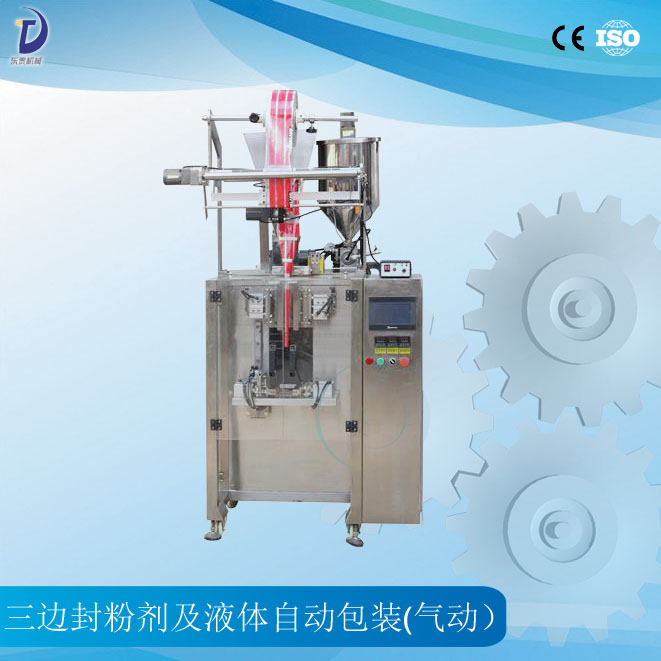

DTFP-320三边封粉剂及液体自动包装(气动)

2021-04-13 14:13 粉剂包装机
产品说明
用途Application
适合各种液体包装如洗洁精、洗发水、牙膏、调味品、蜂蜜或油类等及粉剂包装如奶粉、豆奶粉、麦片、爽身粉、医药或农药粉剂或无粘性细小颗粒物料等。
For packing all kinds of liquid and powder like detergent ,shampoo ,toothpaste ,sauce ,honey ,oil , milk powder ,bean powder ,cornmeal ,talcum powder ,medical or farm powder or non-viscous small granules etc.

功 能Function
光电跟踪及无极调速于一体,可周期完成下料、计量、日期打印、制袋、充填、封合、热压批号、分切计数等作业。
Equipped with photoelectric automatic tracking and stepless speed regulations that can repeatedly complete in-feeding ,weight-checking ,date-printing ,bag-forming ,filling ,sealing ,batch-pressing ,cutting &counting etc.

技术参数Technical Parameter
袋形Bag Type 三边封Three Side Sealing
封口形式 热封Hot Sealing
制袋尺寸Bag Making Range  长Length 50-200mm ; 宽Width 20-140mm
包装速度Packing Speed 40-60bags/min
计量范围Filling Range  10-200g
大包装膜宽Film Max. Width 320mm
计量方式Weight-Checker 螺杆及计量泵Both Screw and Pump
打码机Date Printer 可选As Required
驱动方式 气动驱动Pneumatic
总功率Power 1.2Kw
电源Power Supply 220V/50Hz-60Hz
机重Weight 280Kgs
外形尺寸Dimension   700x900x1750mm
